Molds of production equipment for lithium-ion battery
Secondary battery means, Energy storing technology which can improve the electric power quality and maximize the energy effectiveness by storing and using the high efficiency of electric energy, and reduce the amount of greenhouse gas emission remarkably. We manufacture notching mold of the facility that manufacture batteries for electric car and ESS storage devices.

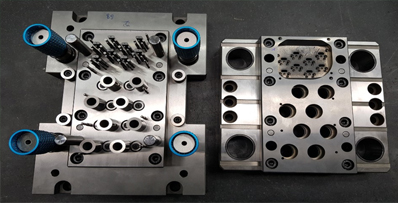

insulated board punching mold
- PurposeA mold that is punched on an insulating plate that is inserted to prevent electricity or heat from being transferred to the top and bottom of a round cell can.
- Manufacturing tolerance± 0.002
- Manufacturing period25~30 days after the order
(change of processing time in accordance with the size) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection /TEST ▶ Supply

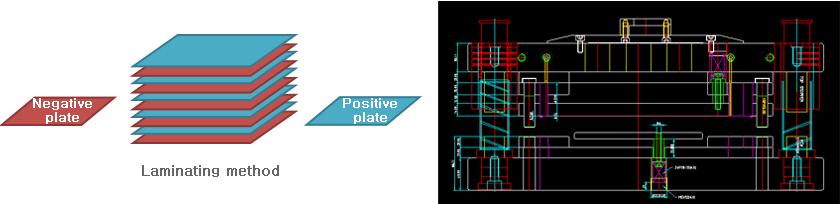

Polar plate punching mold
- PurposePunching mold which cuts the positive and negative polar plate of secondary battery using laminating method into a certain size
- MaterialUltralight, S45C, SKD11, SKD61, AL
- Manufacturing tolerance±0.001
- Manufacturing period30 days after the order
(change of processing time in accordance with the special material and size) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply
Tab cutting mold
- PurposeA mold cutting the positive/negative pole tab, which is being attached to the side surface of cell after the forming, in a certain size
- MaterialSKD9, S45C, SKD11
- Manufacturing tolerance± 0.002
- Manufacturing period20 days after the order
(change of processing time in accordance with the shape) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply
Cell cutting mold
- PurposeA mold to cut the unnecessary parts after forming
- MaterialSKD11, SKD61
- Manufacturing tolerance± 0.002
- Manufacturing period20 days after the order
(change of processing time in accordance with the shape) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply
Forming Mold
- PurposeForming mold to form the pouch to manufacture the pocket to put the cell that the winder process is completed
- MaterialS45C, SKD11, SKD61, AL
- Manufacturing tolerance± 0.01
- Manufacturing period20 days after the order
(change of processing time in accordance with the shape) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply
