Superprecision parts of production equipment for lithium-ion battery
Secondary battery means, Energy storing technology which can improve the electric power quality and maximize the energy effectiveness by storing and using the high efficiency of electric energy, and reduce the amount of greenhouse gas emission remarkably. We manufacture core superprecision parts of the facility that manufacture batteries for electric car and ESS storage devices.

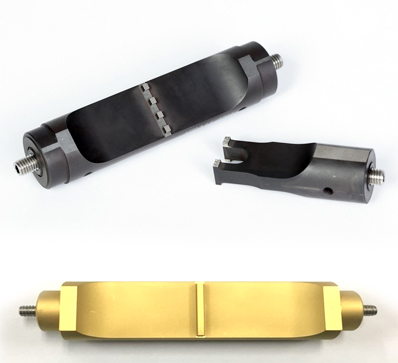

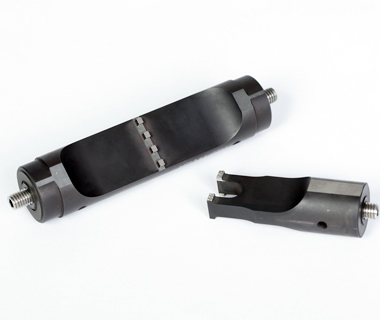

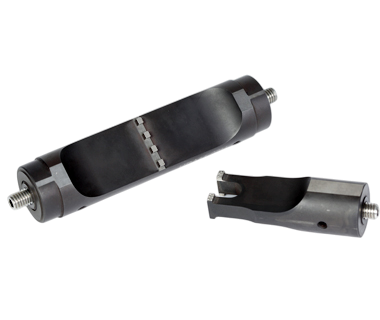

Ultrasound horn
- PurposeEquipment attaching the tab by using ultrasound on the selected area of cell being wrapped to the center of jelly-roll during winding
- Manufacturing tolerance±0.01
- Manufacturing periodManufacturing period: 20 days after the order
(change of processing time in accordance with the shape) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply

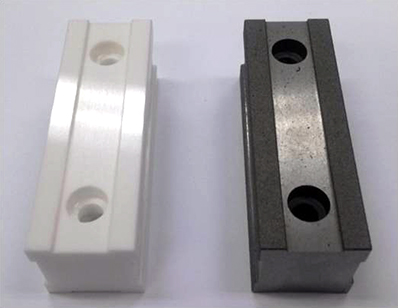

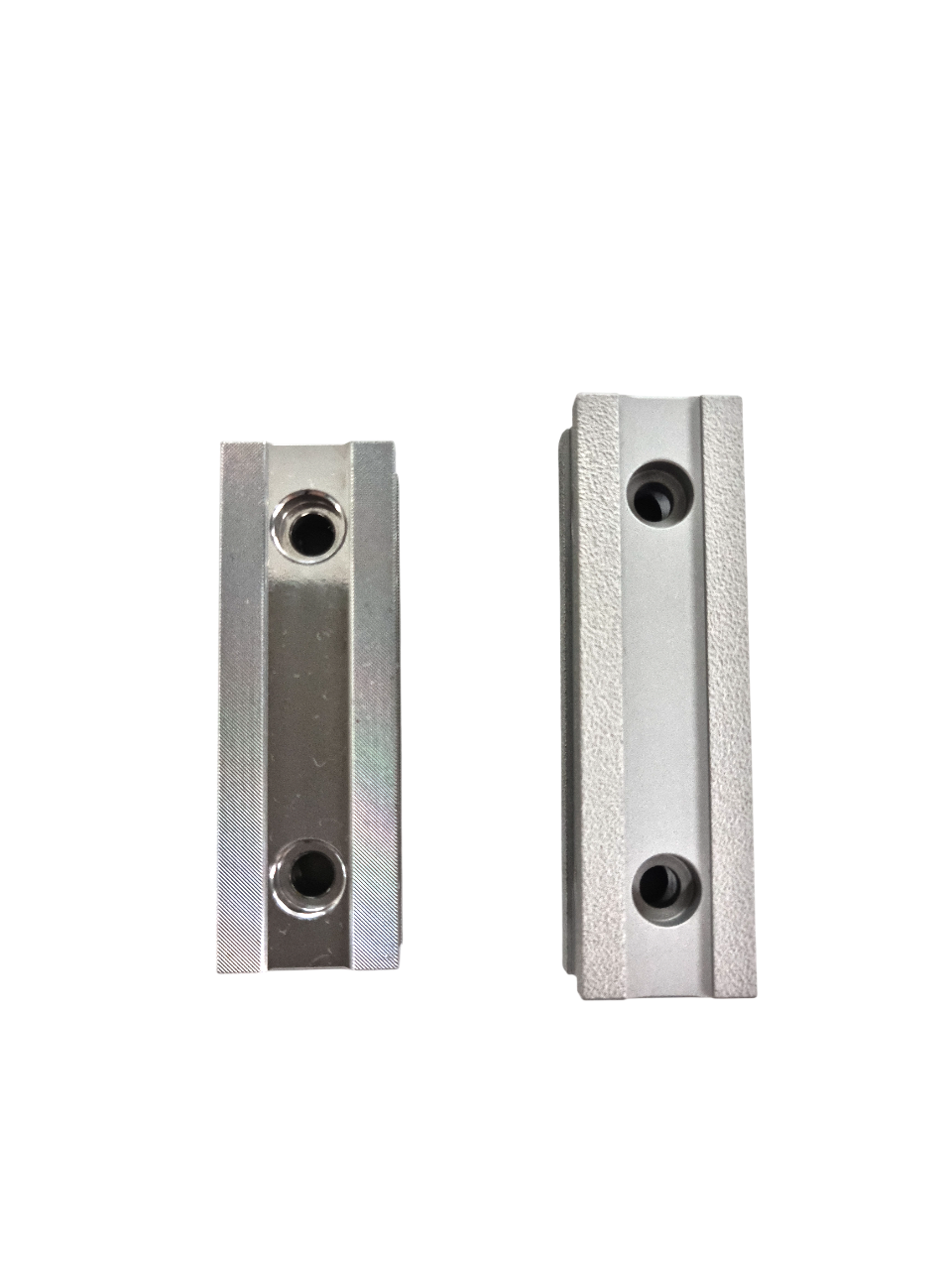

ANVIL
- PurposeA part for the movement of tab during winder process and support during welding (applied during ultrasound welding)
- MaterialCeramic, SKD-11
- Manufacturing tolerance±0.01
- Manufacturing period15 days after the order
(change of processing time in accordance with the size) - Process chartDesign ▶ Process ▶ Assembly ▶ Inspection / Test ▶ Supply

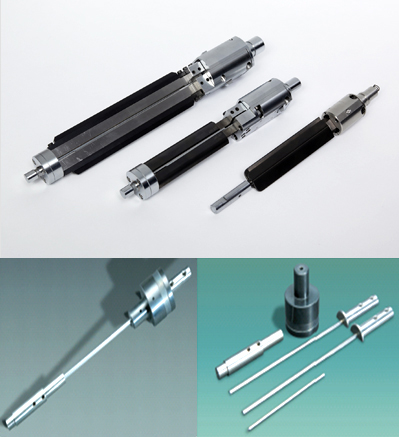

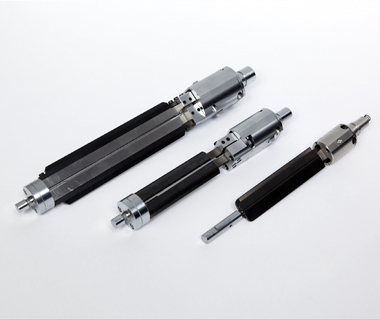

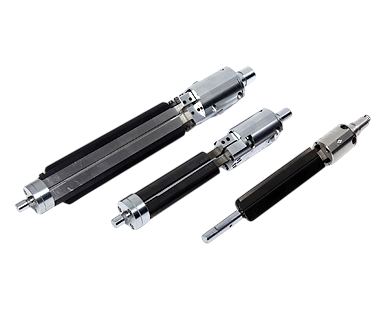

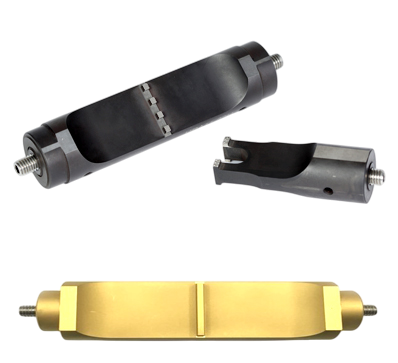

Center of Jelly-roll
- PurposeCore part wrapping in B/T shape by holding the positive and negative cells at the same time
- MaterialAL, SKD61, PEEK
- Manufacturing tolerance±0.005
- Manufacturing period20 days after the order

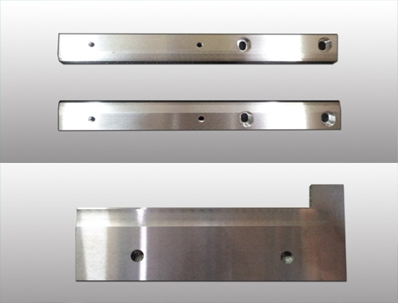

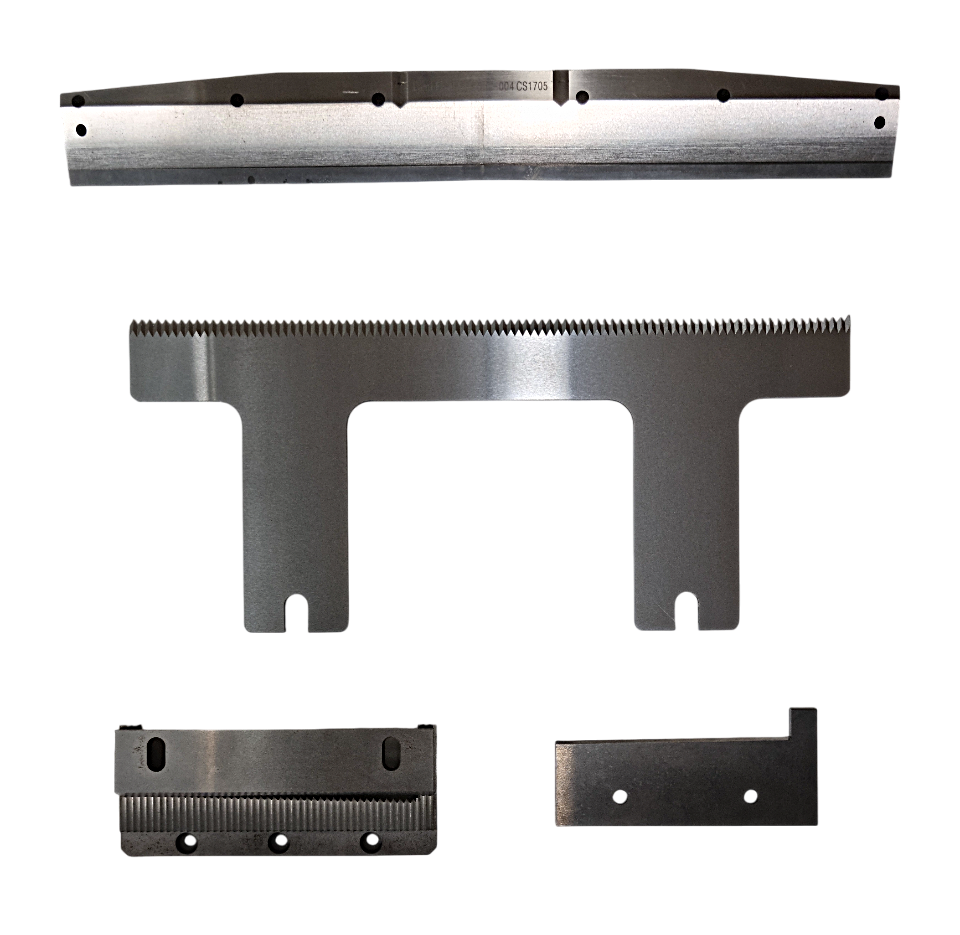

CUTTER
- PurposeThe part that cut cells during the manufacture of batteries
- Manufacturing tolerance ±0.001
- Manufacturing period20 days after the order
(change of processing time in accordance with the shape) - Process chartProcess ▶ Inspection / Test ▶ Supply
