What is AR (Anti-Reflection)
coating solution?

Coating solution which increases the effectiveness of solar battery by increasing the solar penetration ratio.

[AR Coating Solution]

All solar batteries need glass with high penetration ratio that soda lime component, low iron and pattern design are applied. TRANSMAX™ with nano material, which is developed by our company, can reduce the reflection rate and increase the penetration ratio through the coating process.

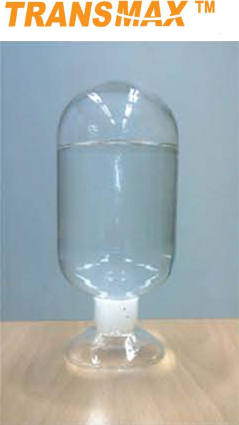

TRANSMAX
Item Contents
Shape Clear solutions
Solvent Alcohol
Component SiO₂& etc
Density (25℃) 0.9?±?0.2
Viscosity (cps, 20℃) < 10
Storing temperature 25℃ and below
Storing condition *Away from direct heat and sunlight
*12 weeks
Recommended direction for use
  • *Coating process : spray, roll, dip (wetting)
  • *Dry film Thickness : below?200nm
  • *Curing : 100 ~ 740℃ by heating

[AR Coating for Solar Battery]

Photoelectric conversion efficiency of solar battery can be increased since more than 2.5% of penetration ratio is increased after AR coating compared to the ratio before coating.

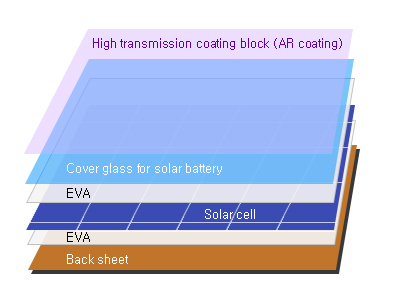

High transmission coating block (AR coating) , Cover glass for solar battery , EVA , Solarcell , EVA , Back sheet
  • Coating on solar battery cover glass
  • Increase in penetration ratio
  • Increase in effectiveness of solar battery

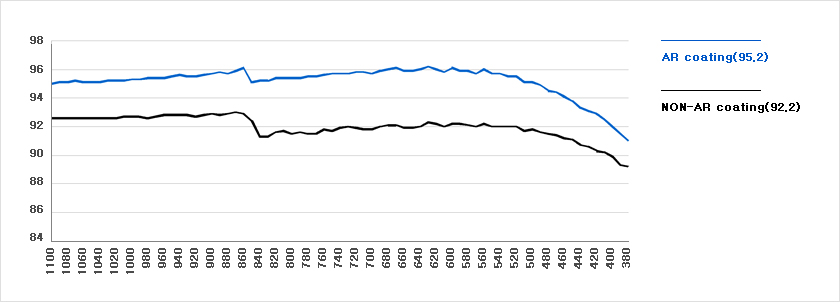

[Graph for Solar Penetration Ratio]

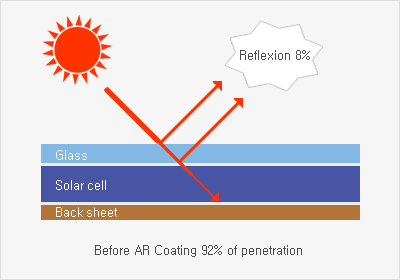

  • Glass , Solar cell , Backsheet : Reflexion  8%(Before AR Coating 92% of penetration)

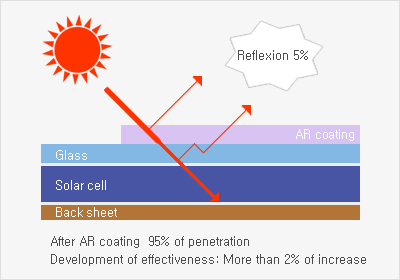

  • AR코팅 , Glass , Solar cell , Backsheet : Reflexion  5%(After AR coating  95% of penetration  Development of effectiveness: More than 2% of increase)
AR coating(95.2) , NON-AR coating(92.2)
